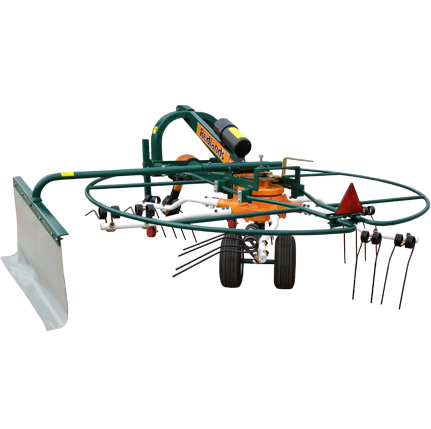

Rotary Hay Rake

Rotary Hay Rake
Watch Video for Reference
Description



Redlands Rotary Hay Rake dries and windrows hay and all kinds of straw, fast and efficiently. Windrowing helps to collate the cut hay or straw for baling or to spread the hay/ straw for drying. Other applications include windrowing coir, sugarcane, corn and cotton harvest waste.

Redlands tractor operated Rotary Hay Rakes are available in 2 variants,

SPECIFICATIONS

Model RRR 626 RRR 936
Hitching system CAT-II  Standard 3 point hitch CAT-II  Standard 3 point hitch
Tractor power 25 hp  & above 30 hp  & above
Max. Working width 230  cm 360 cm
Number of rotors 1 1
Gear reduction 5.2 : 1 7.14 : 1
Rotor diameter 180 cm 270 cm
No. of arms per rotor unit 6 9
Tine diameter 8 mm 10 mm
Tine arm style Tangential / Curved Double coiled &  tangential
Working speed 2 to 6 km/hour 2 to 6 km/hour
Standard tyres 13 x 5.00 – 6PR 13 x 5.00 – 6PR
Dimension (LXWXH 210 X 223 X 106 cm 360 X 400 X 130 cm
Weight 210 kg 380 kg







.

Product Enquiry
Features
  • Cam box provided for dust protection in cam drives
  • Height adjustment provision for crown wheel
  • Spring tines made up of grade 3 material
  • Heavy duty gearbox
