RRR 936

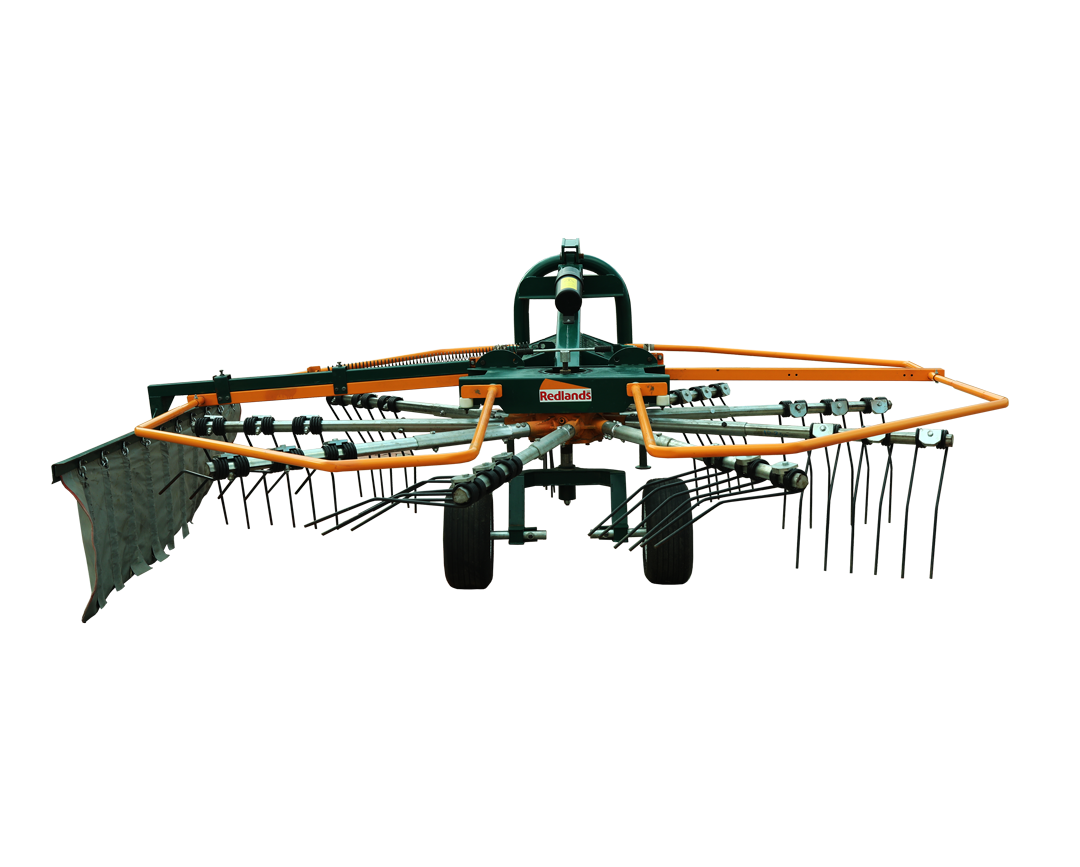

Hay RAKE is an agricultural rake used to collect cut hay or straw windrows for later collection by a straw baler. It is also designed to spread the hay and turn it over so that it may dry.

Or scroll down to read more

Technical Specifications

MODELRRR 936
Tractor power40 hp & above
Max.working width360cm
Rotor diameter290 cm
Arms per rotor unit9 number
Double tines per arm3 number
Tine diameter10mm
Working speed2- 4 km/hour
Standard tyre16* 6.5 - 8 Tubeless
Dimension360*320*130cm
Weight460kg
VariantRRM 626

Features

  • Cam box provided for dust protection in cam drives

  • Height adjustment provision for ground wheels

  • Spring tines made upof grade 3 material

  • Heavy duty gearbox

  • Triangle profiled male & female time arms

  • Spring tines made up of grade 3 material
